FG-400

Categories: , ,

Description

Fixed Frame

Product description:

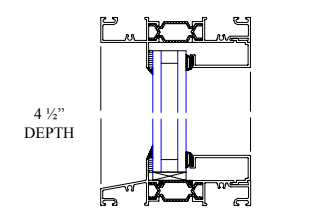

  • 4 ½” or 5⅞″ standard frame depths

  • Narrow profile — accepts 1” to 4” thick glazing

  • Compatible with all 200 series, 300 series, 400 series vertical and horizontal operable styles

  • Extruded aluminum construction with rigid thermal break

  • Sill sash glazing adaptors available for easy replacement in the field

  • Option for split finish as per requirements

  • Adaptable to existing mullion designs with interlocking panning and trim

  • Pressure-fit glazing stops

  • Slide-in rubber gasket for equalized glazing compression

Options: Awnings, Vents, Casements and sliders (single pane only)

FG-400 Feature Sheet

FG-400 Part List
